I have seen lots of people asking how to use BSNL broadband modem on Airtel Broadband connection and Airtel beetel modem on BSNL broadband connection.
Yes, you can use:
- Airtel broadband modem (Beetel) on BSNL broadband connection.
- BSNL broadband modem on Airtel Broadband connection.
Because both uses DSL technology.
All you need is configure your modem with your ISP username and password. And use correct VPI / VCI value as provided by your ISP.
In this tutorial I will show you how to configure Airtel Beetel 220BX modem for BSNL broadband connection.
- Open any browser (IE, Firefox, Chrome, Opera) and go to url http://192.168.1.1
- Enter username and password of your modem. Generally user name is admin and password is admin or password.
- Click WAN link from left pane menu.
- You will get list of all WAN setups configured on your modem. Click Edit button of first setup.

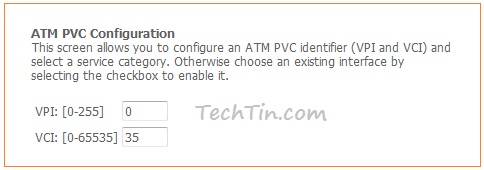

- For BSNL broadband VPI/VCI value is 0/35 This can be different, so conform this from BSNL customer care. Enter VPI/VCI value and click Next button.

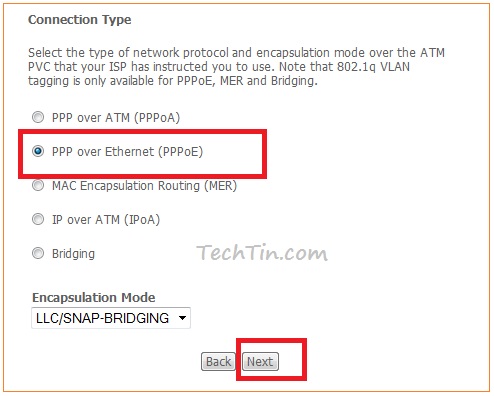

- Select connection type PPPoE This is best network protocol for DSL broadband connections. Click Next button.

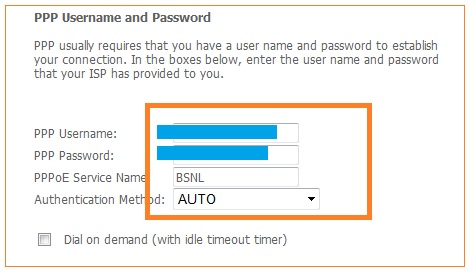

- Enter your BSNL broadband username and password. This is provided by BSNL. Click Next button.
- Continue clicking Next button and leave rest as default. On final page click Save button.
- Configure DNS address of your LAN / wifi card as provided by your ISP.
You can also use Google Public DNS or OpenDNS. - Reboot your modem.
Your Beetal modem is ready to be used on BSNL broadband connection. If you are still not able to configure, leave comment below.
Hi Ravi,
I am using BSNL modem for surfing using Airtel connection.
Though I configured it, whenever I power it down..the configuration settings get reset and again I need to restore it.
Do you have any idea why it gets reset whnenever modem is powered down?
Sounds like hardware problem. Reset your modem to factory default, and then apply new settings. After you have applied new settings, save and reboot modem.
You can also try upgrading firmware of the modem.
You can also cal Airtel customer care at 198 and ask for help. I must admit, Airtel has good customer care service.
Thanks for your info…
Without any firmware upgrade it started working after I done the SAVE?REBOOT step…Airtel ppl didn’t help as it is UTSTAR modem…
I dont have any details about the username and password , before i was using bsnl modem now its gone down , i have this beetal modem
but where to see the username and password
These instructions are not working anymore ):
Diagnostics says PPP connection failed!
hi i am using airtel modem for bsnl network i want to ask that does configuring the modem effect our network speed or we have to configure the speed also because when we open our adim login it shows line down and line up in kbps plz rply i am in a great confusion
I am unable to connect after following above steps. Please help me.
Hi
im using airtel(beetel)modem with bsnl broadband connection but i cudnt connect to web page when i approached bsnl they told ur modem is configured with bsnl but i cudnt connect advice me on this
